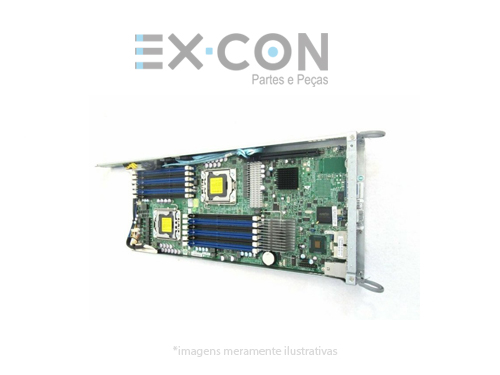

Acompanha gaveta P/N: 01-SC82706-XX00C001 / 01-SC82702-XX00C001, que é compatível com os SuperChassis CSE-827H; também acompanha dissipador passivo Supermicro SNK-P0037P, placa adaptadora hot-swap BPN-827ADP-X8 e 3 cabos SATA CBL-0317L.
Intel Xeon processor 5600/5500 series, with QPI up to 6.4 GT/s
Intel® 5500 (Tylersburg) Chipset
Up to 192 GB** DDR3 1333/ 1066/ 800 MHz ECC registered DIMM / 48 GB unbuffered DIMM
Intel 82576 Dual-Port Gigabit Ethernet controller
1x (x16) PCI-E 2.0 slot
Integrated IPMI 2.0 with KVM and Dedicated LAN
Integrated Matrox G200eW Graphics
Compatível com Chassis Blade Supermicro:
1U Chassis
– CSE-808T-1200B
– CSE-808T-780B
– CSE-809T-1200B
– CSE-809T-780B
2U Chassis
– CSE-827H-R1200B
– CSE-827H-R1400B
– CSE-827T-R1400B
– CSE-827HQ
Product SKUs
MBD-X8DTT-F-B X8DTT-F
Physical Stats
Form Factor Proprietary
Dimensions 16.64 x 6.5 (42.26cm x 16.51cm)
Processor/Cache
CPU
Dual 1366-pin LGA Sockets
Supports up to two Intel 64-Bit Xeon processor(s) of the same type below:
Intel Xeonprocessor 5600 Series (Westmere)
Intel Xeonprocessor 5500 Series (Nehalem-EP)
QPI Up to 6.4 GT/s
System Memory
Memory Capacity
12x 240-pin DIMM sockets
Supports up to 192 GB** 1333 / 1066 / 800 MHz DDR3 ECC registered memory
Supports up to 48 GB 1333 / 1066 / 800 MHz DDR3 ECC / Non ECC unbuffered memory
Memory Mirroring supported
Memory Type 1333 / 1066 / 800MHz ECC registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
1GB, 2GB, 4GB
, 8 GB**
, 16 GB**
Memory Voltage 1.5 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Supports Intel x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset
Intel 5500 (Tylersburg) chipset
ICH10R
SATA
Intel ICH10R SATA 3.0 Gb/s controller
RAID 0, 1, 5, 10 support (Windows)
RAID 0, 1, 10 support (Linux)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM over LAN support
Winbond® WPCM450 BMC
Network Controllers
Intel 82576 Dual-Port Gigabit Ethernet controller
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T; RJ45 output
Intel I/OAT 3 support for fast, scaleable, and reliable networking
VMDq support for better performance of virtualization
1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics Matrox G200eW
Super I/O Winbond W83527HG chip
Clock Generator 932S421 chip
Input / Output
Serial ATA
Six Serial ATA ports
Six SATA hard drives supported
LAN
2x RJ45 LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
2x rear 1x header (2x Ports)
4 total USB ports, 2.0 Compliant / 1.1 Compliant
VGA 1x VGA Port
Serial Port 1x Fast UART 16550 serial port
OS compatibility
Please see our OS Compatibility Chart
Chassis ( Optimized for X8DTT-F)
1U Chassis
CSE-808T-1200B
CSE-808T-780B
CSE-809T-1200B
CSE-809T-780B
2U Chassis
CSE-827H-R1200B
CSE-827H-R1400B
CSE-827T-R1400B
CSE-827HQ
Important Chassis Notes To support the new generation Intel® Xeon® processor-based motherboards, a Revision K chassis is recommended for most models. Please talk to your sales representative or follow the link for details.
Expansion Slots
PCI-Express 1x (x16) PCI-E 2.0 slot
System BIOS
BIOS Type 32Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
PCI 2.2
ACPI up to 3.0
USB Keyboard support
Management
Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
SuperDoctor® III
Watch Dog
NMI
Power Configurations
ACPI Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery
PC Health Monitoring
Voltage
Monitors for CPU cores, 1.5 V, 3.3 V, 5 V, 12 V, 5 Stdby, 3.3 Stdby, VBAT, Memory voltages.
CPU core 6-Phase-switching voltage regulator
FAN
Total of four 4-pin PWM fans
4x fans with tachometer monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control (4-pin fan only)
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Control for 4x Fan Connectors
PSU I²C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI
LED
Power Fail / Overheat LED
Supsend-State Indicator LED
UID LED
Other Features SDDC Support
Operating Environment / Compliance
RoHS RoHS Compliant 6/6, Pb Free
Environmental Specifications
Operating Temperature: 10° to 35 °C (50° to 95 °F)
Non-operating temperature: -40° to 70 °C (-40° to 158 °F)
Operating relative humidity: 8% to 90% (non-condensing)
Non-operating relative humidity: 5 to 95% (non-condensing)
