– Seagate Constellation ES fifth-generation drives lead the industry with a range of
high-capacity enterprise drive options. Available in both 6Gb/s SAS and SATA interfaces, these drives feature
enterprise-class reliability with the power and performance efficiencies that make them ideal for capacity-optimised, 24×7
multi-drive server and storage environments.

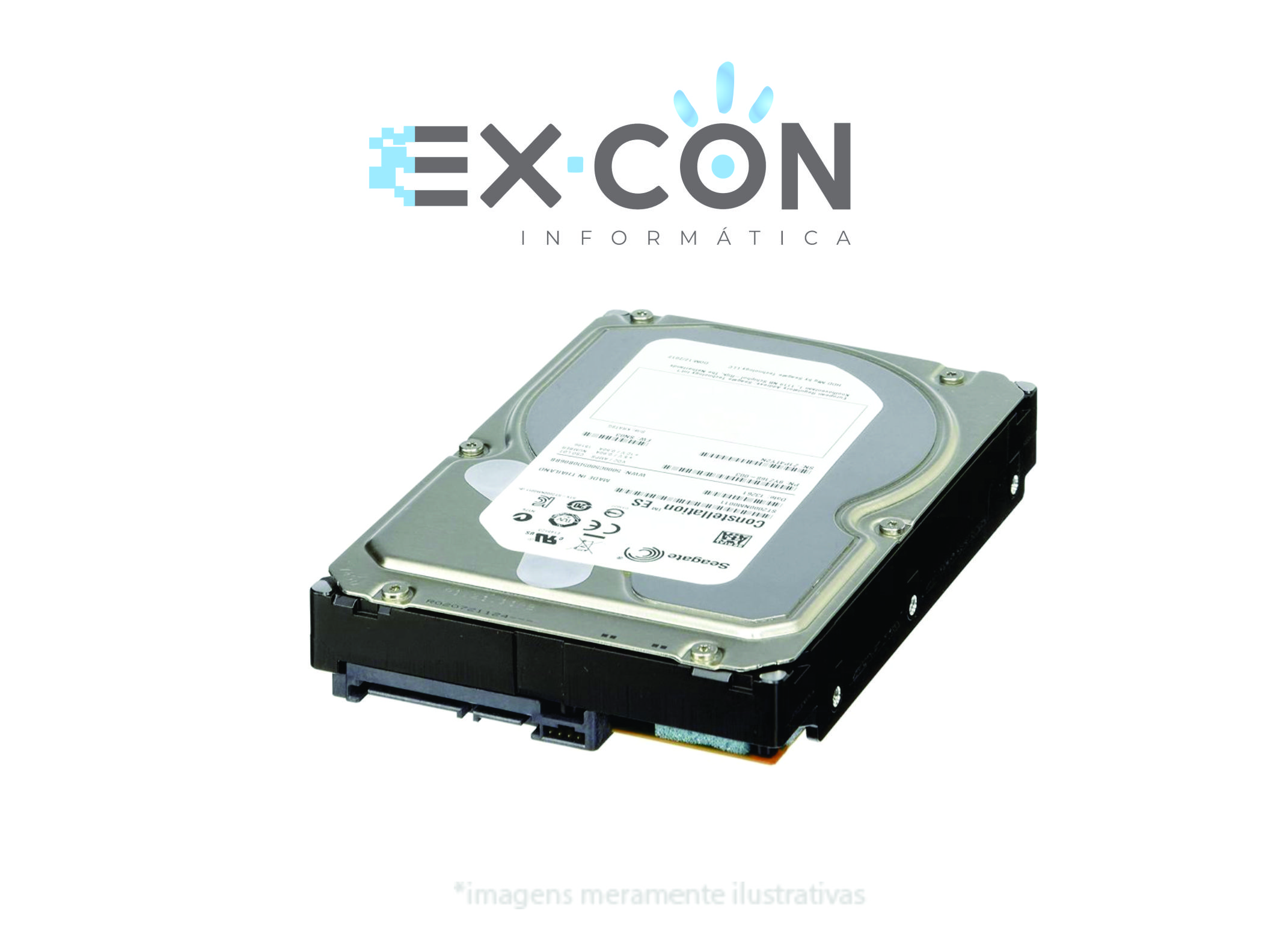

Product Name 2TB 7200RPM 64MB Buffer, 6GB/S SATA, 3.5
Product Type Hard Drive
Buffer 64 MB
Height 1.03
Width 4
Depth 5.79
Product Series ES
Form Factor Internal
Product Model ST2000NM0011
Product Line Constellation
Storage Capacity 2 TB
Rotational Speed 7200 rpm
SPECIFICATIONS.
– Model Number
ST2000NM0011
– Interface
SATA 6Gb/s
– Cache
64MB
– Capacity
2TB
– Areal density (avg)
324Gb/in2
– Guaranteed Sectors
3, 907, 029, 168
– PHYSICAL
– Height (maximum)
26.10mm
– Width (maximum)
101.85mm
– Length (maximum)
147.00mm
– Weight (typical)
710g
– PERFORMANCE
– Spin Speed (RPM)
7200 RPM
– Sustained data transfer rate
147Mb/s
– Average latency
4.16ms
– Random read seek time
8.5ms
– Random write seek time
9.5ms
– I/O data transfer rate
600MB/s
– Unrecoverable read errors
1 in 1015
– RELIABILITY
MTBF
1, 200, 000 hours
– Annual Failure Rate
0.73%
– POWER
– 12V start max current
2.10A
– 5V start max current
0.53A
– Average idling power
6.24W
– Average operating power
8.94W
– ENVIRONMENT
– Operating Ambient Temperature
5°-60°C
– Non-operating Ambient Temperature
-40°-70°C
– Maximum operating temperature change
20°C per hour
– Maximum non-operating temperature change
20°C per hour
– SHOCK
– Operating shock (max)
70/40 Gs for 2ms
– Non-operating shock (max)
300 Gs for 2ms
– ACOUSTICS
– Acoustics (Idling Volume)
2.7 bels
– Acoustics (Seek Volume)
3.0 bels
